EVOLVE Lightweight, ergonomic manual pipettes
Lightweight, ergonomic manual pipettes
Set volumes in the blink of an eye instead of a twist of the wrist!
Traditional pipettes utilize a single rotating plunger to set the volumes. This approach makes frequent adjustment of volumes tedious, especially when switching from lower to higher volumes.
The EVOLVE manual pipette has been designed to overcome this pain point and offers many other advantages:
- Quick set dials
Adjust volumes more than ten times faster thanks to three adjustable dials. - Reduced risk for repetitive strain injuries
Lightweight, low force design reduces the effort required to attach and eject GRIPTIPS® and depress the plunger. - Best in class pipette tips
GRIPTIPS® are always firmly attached, perfectly aligned and feature a low attachment and ejection force. - Wide product range
EVOLVE pipettes are available for volumes from 0.2 µl to 5000 µl, as single, 8, 12 and 16 channel models.
Promotions
Show allHow it works
The EVOLVE manual pipette features three adjustable dials to rapidly set volumes. This approach allows users to set volumes more than ten times faster than standard manual pipettes.
-
Quick Set Dials
![Scientist using the EVOLVE Quick Set Dial design to change volumes on their single channel manual pipette.]()
Unlike traditional pipettes which utilize a single rotating plunger to set volumes, EVOLVE features one dial for setting each of three volume digits. This is the same convenient method used to unlock three dial combination locks.
Simply depress and twist the plunger to release spring tension from the volume dials. This allows users to freely adjust all dials in either direction. Once set, twist and return the plunger to the up position.
Volumes set on traditional manual pipettes can often change while pipetting due to unintentional plunger turns. The EVOLVE Quick Set Dial design prevents inadvertent volume drift due to plunger movements while pipetting.
-
GRIPTIP® pipette tips which never leak or fall off
![GripTip pipette tips snap into place with minimal tip loading effort resulting in superior accuracy and precision results.]()
GRIPTIPS® are always firmly attached and perfectly aligned, regardless of how many side well touch offs are performed. You no longer have to hammer your pipette tips on or worry about pipette tips falling off!
1) LOBES
2) O-RING SEAL
3) RIM SNAPS OVER THE LOBES
4) SHOULDERThe rim (3) of the GRIPTIPS® will snap over the Multi-Lobes (1), attaching firmly. As a result, GRIPTIPS® will never accidently fall off.
A shoulder (4) provides a positive stop to prevent over-tightening of the tip. The GRIPTIP® can only be attached up to that point and no further, ensuring that all tips are at the same height. As a result, the tip is either on or off, but nothing in between.
-
Storing your pipettes
![A range of INTEGRA manual and electronic pipettes resting on the linear stand.]()
Storing pipettes upright is important to prevent liquid or debris from entering tip fittings. Proper storage also extends the lifespan of a pipette. See the Accessories section below to view INTEGRA's wide selection of storage options and find the right fit for your lab.
-
Sustainability through longevity and plastic reduction
![Scientist taking a GREEN CHOICE refill insert with pipette tips out of the packaging]()
The longer you can use a device, the better it is for the planet. At INTEGRA, we design our products to ensure low wear and easy serviceability. Moreover, we offer consumable solutions that are low in plastic, for both reservoirs and pipette tips.
Customer Voices
See it work
Uses and Applications
Parts and numbers
- Single Channel EVOLVE Pipettes
-
Single Channel EVOLVE Pipettes
For volumes from 0.2 µl to 5000 µl
Single Channel EVOLVE Pipettes
Volume Range Part No. 0.2 – 2 µl 3011 1 – 10 µl 3012 2 – 20 µl 3013 10 – 100 µl 3015 20 – 200 µl 3016 100 – 1000 µl 3018 500 – 5000 µl 3019 Single Channel Starter Pack
3 Pipettes with Nominal Volumes Part No. 20, 200 and 1000 µl 3050 - 8 Channel EVOLVE Pipettes
-
8 Channel EVOLVE Pipettes
For volumes from 1 µl to 1250 µl
Volume Range Part No. 1 – 10 µl 3022 5 – 50 µl 3024 10 – 100 µl 3025 20 – 200 µl 3026 100 – 1250 µl 3028 ![Scientist holding an 8 channel EVOLVE manual pipette.]()
- 12 Channel EVOLVE Pipettes
-
12 Channel EVOLVE Pipettes
For volumes from 1 µl to 1250 µl
Volume Range Part No. 1 – 10 µl 3032 5 – 50 µl 3034 10 – 100 µl 3035 20 – 200 µl 3036 100 – 1250 µl 3038 - 16 Channel EVOLVE Pipettes
-
16 Channel EVOLVE Pipettes
For volumes from 1 µl to 100 µl
Volume Range Part No. 1 – 10 µl 3042 5 – 50 µl 3044 10 – 100 µl 3045 ![Scientist holding a 16 channel EVOLVE manual pipette.]()
16 Channel EVOLVE Pipette - Accessories
-
Accessories

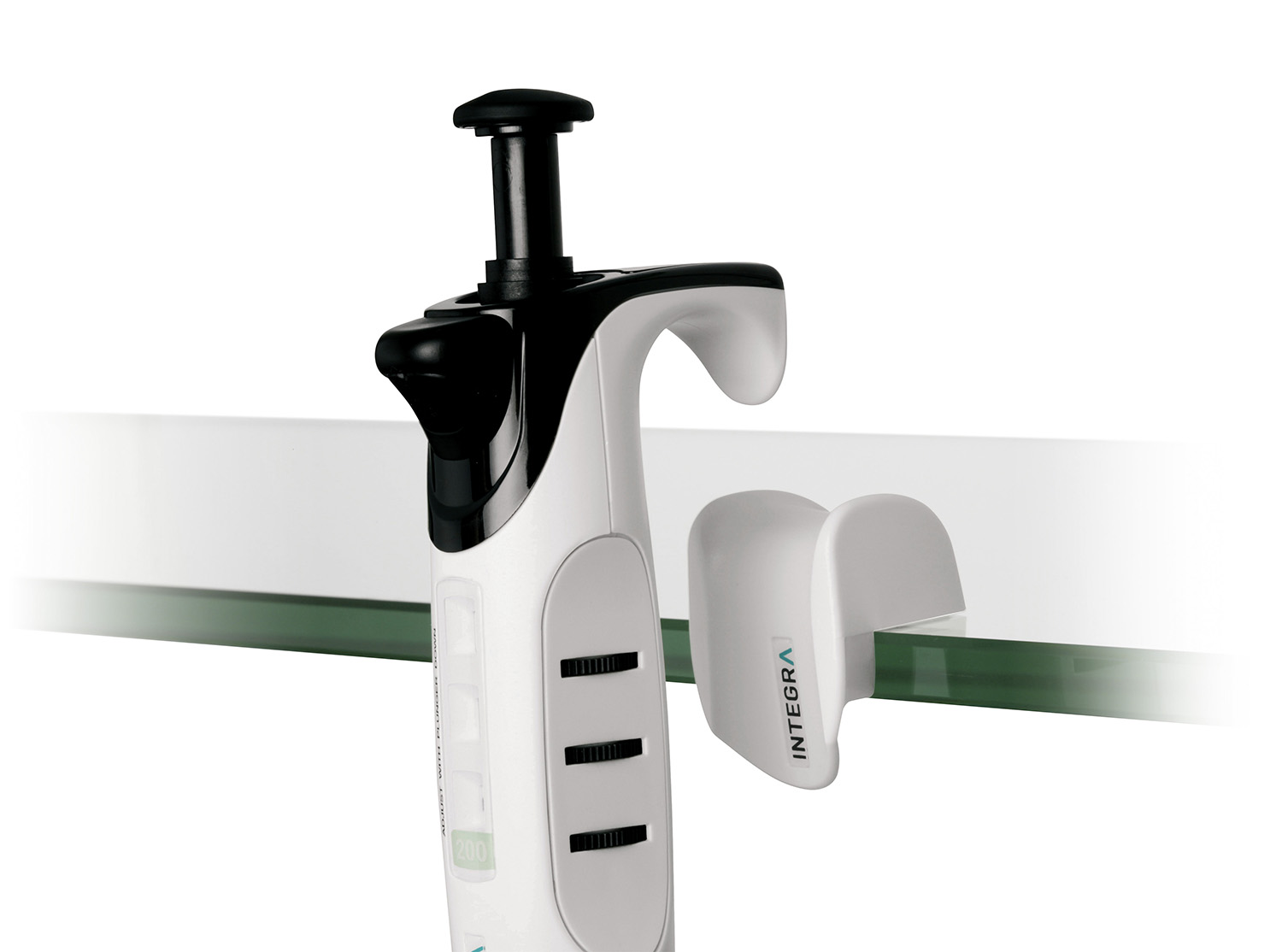

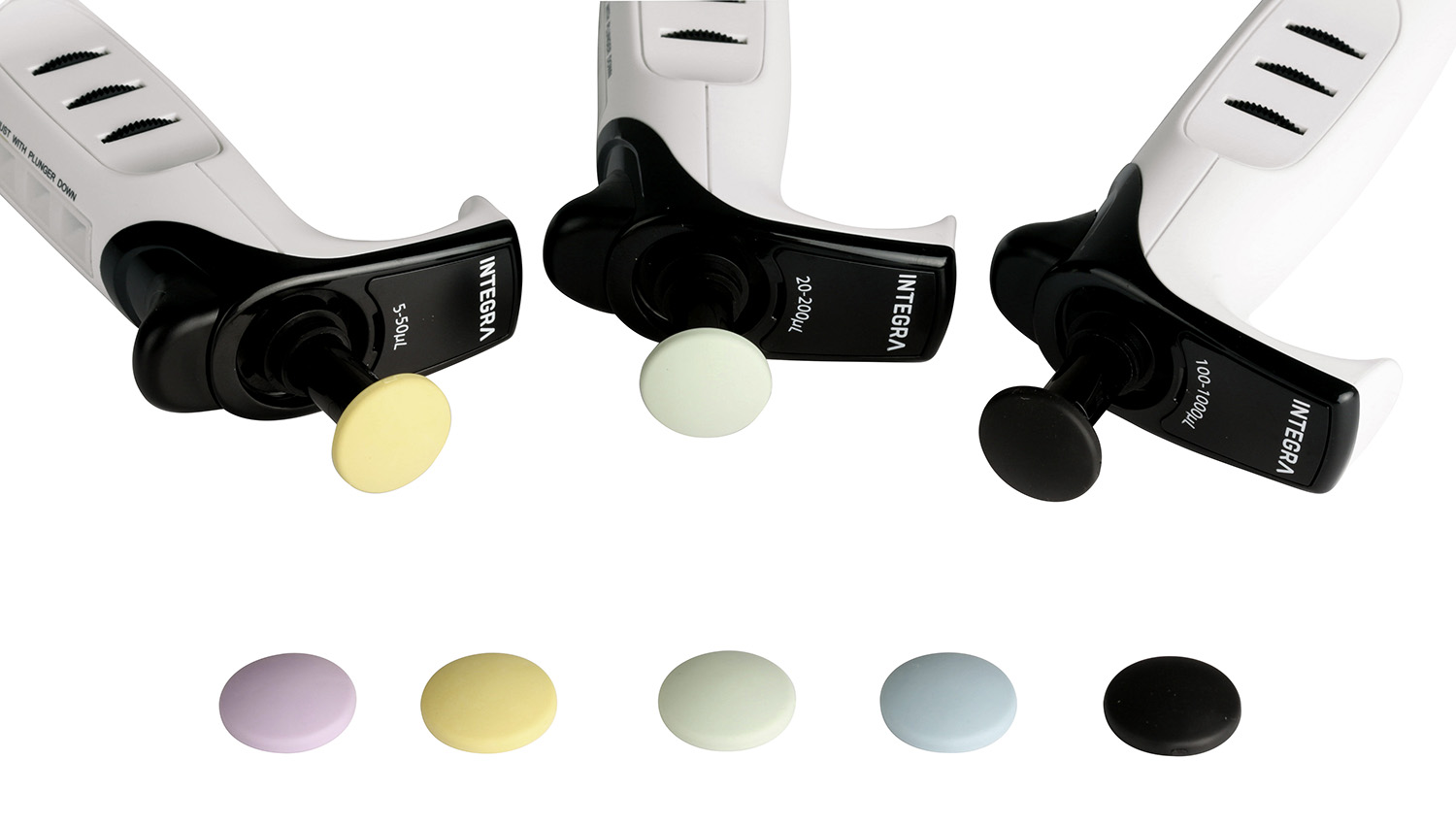

Stands, wall mount, shelf hooks, multipurpose tool, plunger caps

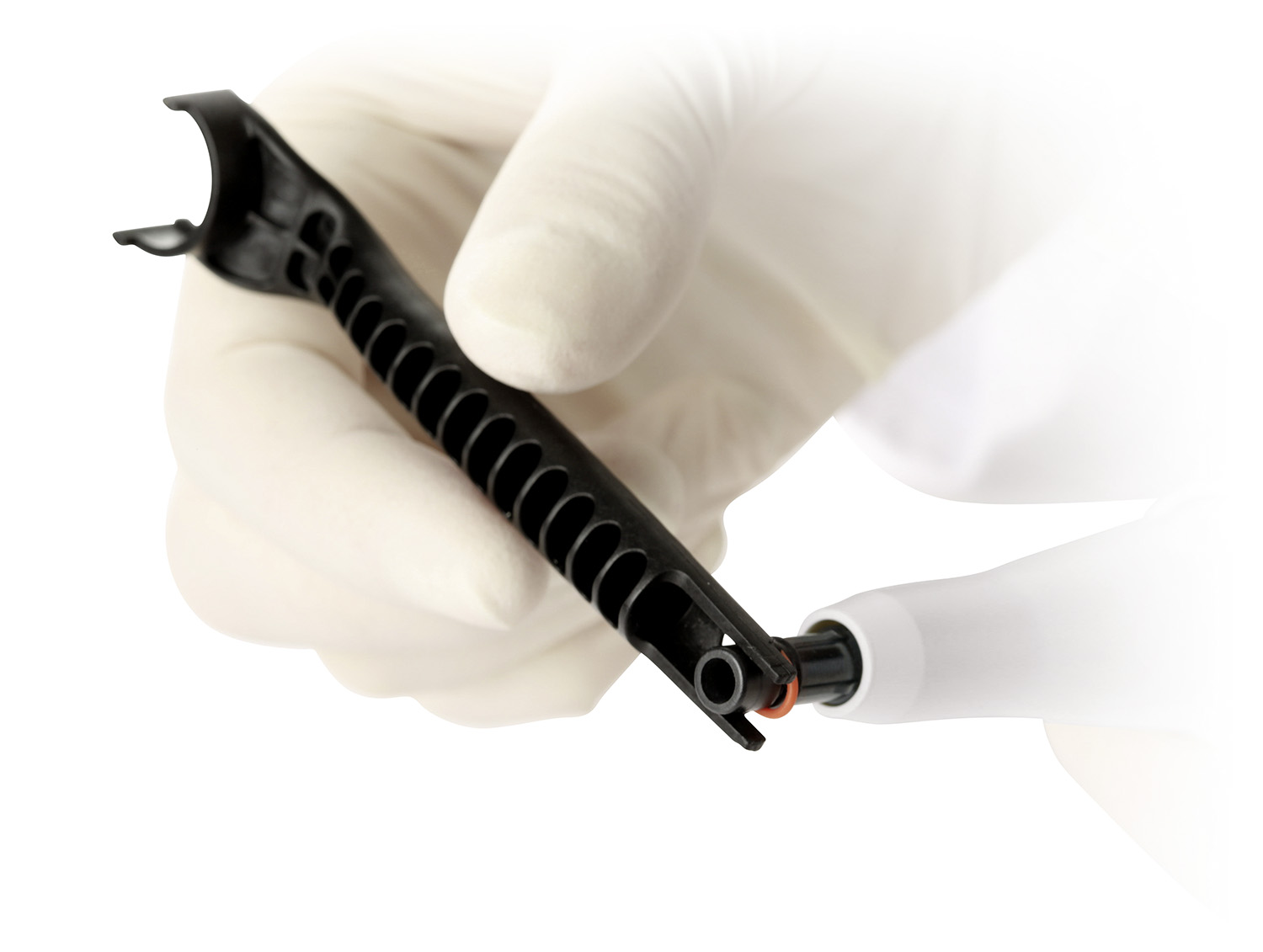

Description Part No. Multipurpose tool for calibration, Calibration adjustment and O-ring removal 3200 Wall mount for handheld pipettes 3205 Shelf hook, 1/pack 3210 Shelf hook, 5/pack 3211 Rotary stand 3213 Short Linear Stand 3214 Linear Stand 3215 Plunger cap, black, 5/pack 3220 Plunger cap, purple (2, 10, 20 µl), 5/pack 3221 Plunger cap, yellow (50, 100 µl), 5/pack 3222 Plunger cap, green (200 µl), 5/pack 3223 Plunger cap, blue (1000 µl), 5/pack 3224 Plunger cap, orange (5000 µl), 5/pack 3225 - Replacement O-Rings
-
Replacement O-Rings
O-rings for tip fittings
Description Part No. 200/300 µl, replacement kit, 24/pack 100-00027-50 1000/1250 µl, replacement kit, 24/pack 100-00028-50 5000 µl, replacement kit, 10/pack 100-00029-00 - GRIPTIPS®
-
GRIPTIPS®
Use the GripTip Selector Guide to find your pipette tips.
